Description

The Jungheinrich mobile workstation, with roller battery exchange system, enables flexible data acquisition at changing locations. With the help of the roller interchangeable carriage, you can quickly replace the battery and ensure a continuous power supply even in continuous operation.

Extendable roller interchangeable carriage – ideal for quick battery replacement and continuous operation

  • Rechargeable via external charger or power station for efficient battery replacement (recommended)
  • Integrated 12-volt fleece batteries (2x12V/60Ah), with charger and converter
  • 6-way Schuko power strip with switch
  • Height-adjustable table top
  • Battery controller for displaying the battery voltage incl. deep discharge protection

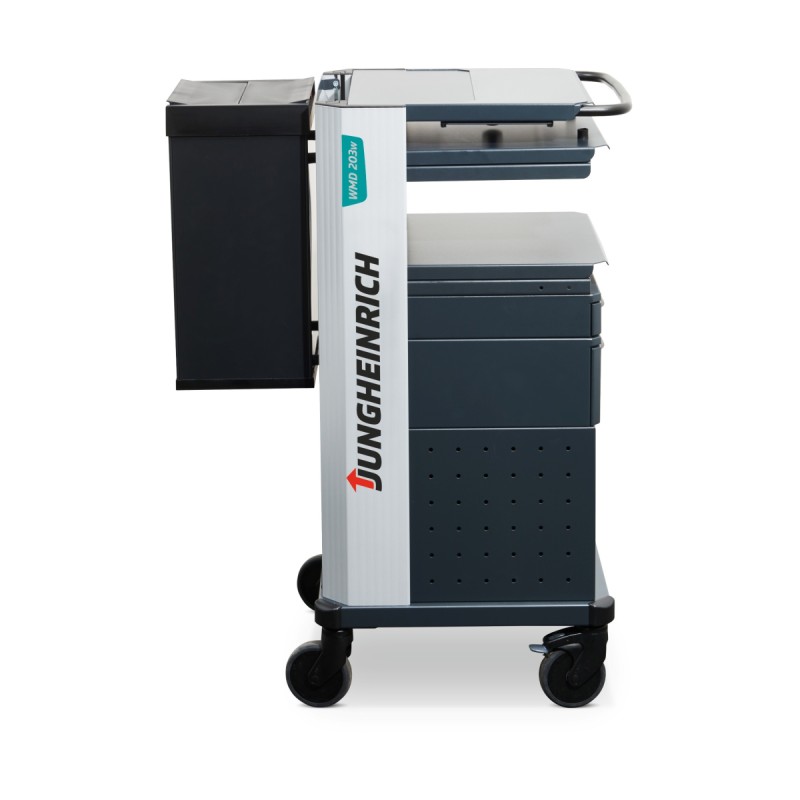

Mobile workstation with fast roller battery change system for continuous operation

Whether in incoming or outgoing goods, during order picking or inventory: You are constantly recording data in the entire warehouse environment to keep your merchandise management system up-to-date.

With the help of the Jungheinrich mobile workstation with roller battery exchange system, you can carry out this data collection independently of the power grid – quickly, flexibly and regardless of location. In this way, you can shorten working distances, work in a process-optimized manner and, if necessary, even in continuous operation.

In the large battery box there are 2x12V fleece batteries. An onboard charger and a converter complete the equipment. A pull-out roller interchangeable carriage allows you to reach the battery tray quickly and easily. For a particularly efficient and energy-saving battery change, you also need a power station: The practical swap station accelerates battery replacement and enables the power supply in continuous operation. A charge level indicator at the mobile Jungheinrich workstation provides information about the battery status. In the event of a critical state of charge, a timely notification is provided by means of an acoustic and visual warning message.

With 2 storage levels, the mobile workstation has plenty of space for storing documents and accessories. The ergonomic handle and large castors make the procedure easy and comfortable. The height-adjustable worktop can be adjusted just as easily to your height. If required, you can put together your Jungheinrich workbench to suit your individual needs: whether with optionally available accessories or components such as a larger table top.

This allows you to flexibly adapt the workstation and better integrate IT components such as PCs, barcode scanners, monitors or printers. To do so, simply contact our customer support.

Order the Jungheinrich mobile workstation with roller battery change system right here in our shop and ensure process-optimised use in continuous operation.

Surface
powder-coated
Height
1130 mm
Depth
580mm
Placement
6-way Schuko power strip with switch
Battery controller for displaying battery voltage incl. Deep discharge protection
Keyboard/Mouse Focuser
Table top in the middle, not extendable, variable in height
Working Range Temperature
0 - 40 °C
Battery Number
2
Handles
Bow Handle
Application
Interior
Frame Material
Sheet steel, aluminium
RAL Colour
RAL 7016 anthracite grey
Table top WxD
500 x 440 mm
Width
550 mm
Technical characteristics
OnBoard Charger 9 A
Onboard Sine Wave Converter 24 V DC-230 V AC/375 VA
Equipment
configurable
Battery Type
Fleece battery 12 V/60 Ah
Dead load
114 kg
Suitable for end devices
Label Printer
PC
Scanner
Screens
Terminals
Laser printer operation
no
Number of roles
4
Roller Type
Swivel castor
Capacity
60kg
  • NEW
  • Mobile workstation, with roller battery replacement system

    Quickly replace batteries for mains-independent continuous operation

    • Integrated 12-volt fleece batteries (2x12V/60 Ah), with charger and converter
    • 6-way Schuko power strip with switch
    • Height-adjustable tabletop
